類型：TFT豎屏

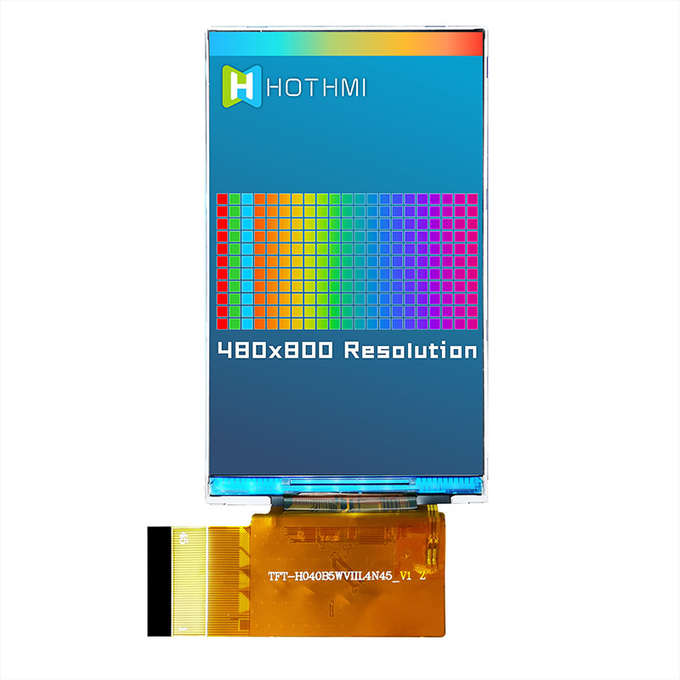

顯示像素：480x800
外形尺寸 ：57.14×96.85×2.10
VA尺寸：4.0
AA尺寸 ：4.0
有效尺寸mm：51.84x86.40
應用：儀器儀表

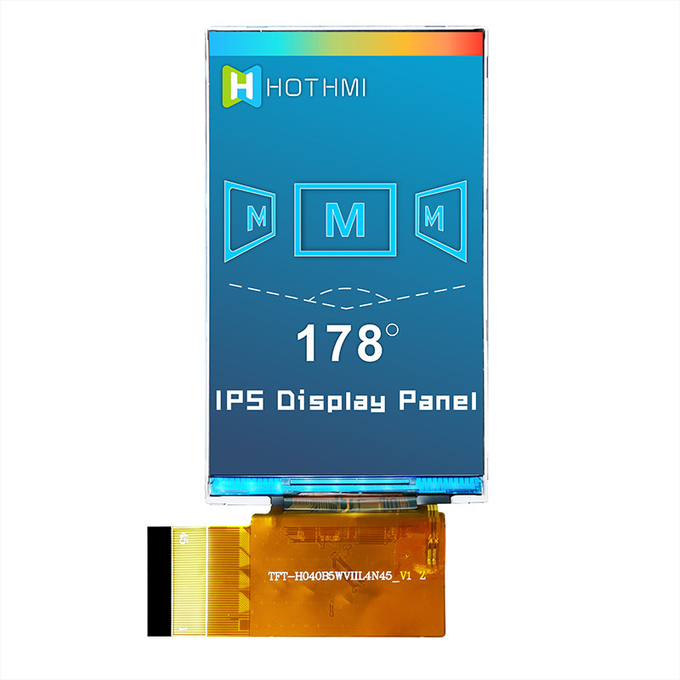

視角：全視角

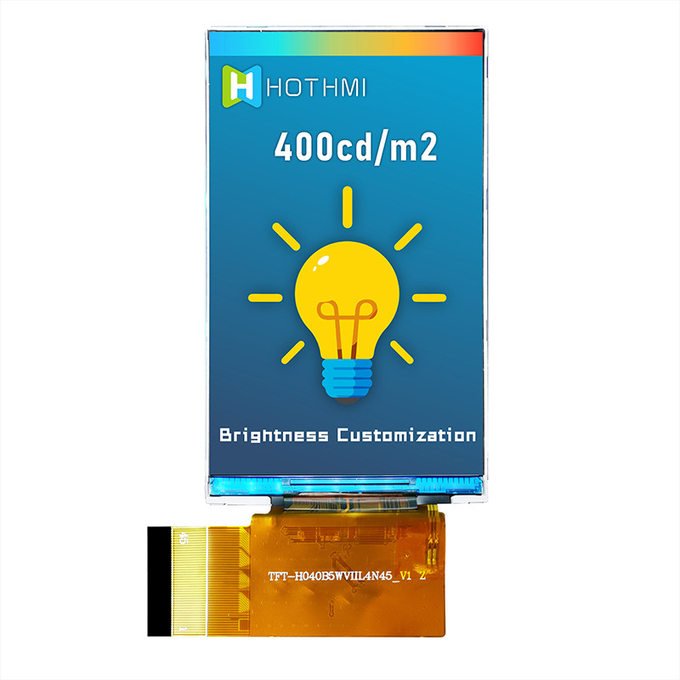

背光/亮度：400cd/m2
引腳：45pin

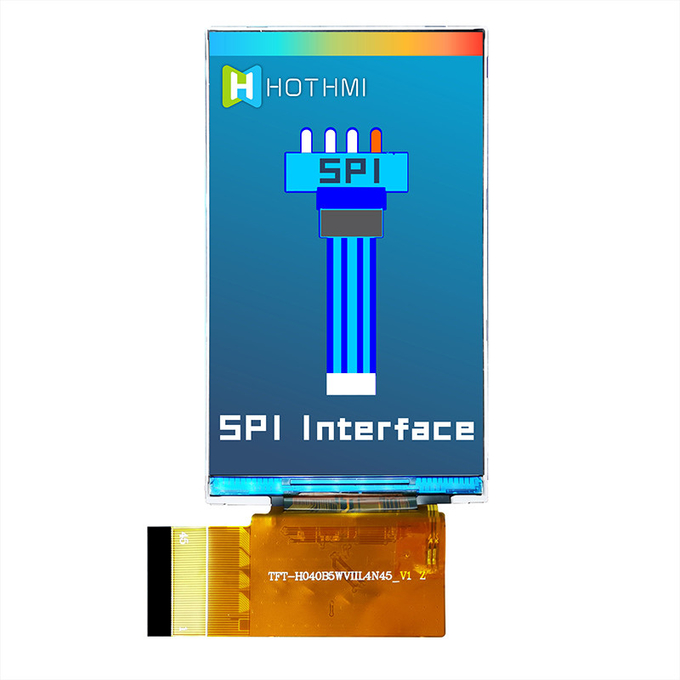

接口方式：SPI

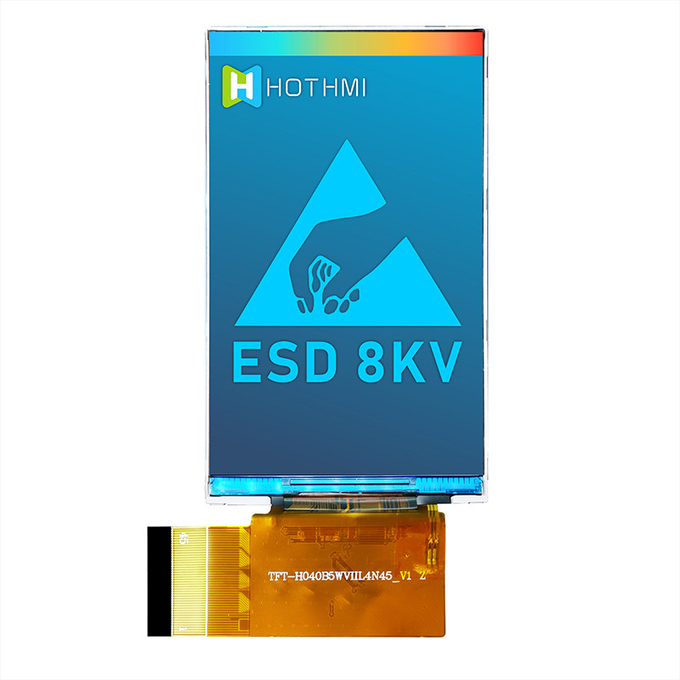

特殊說明：抗靜電ESD 8KV

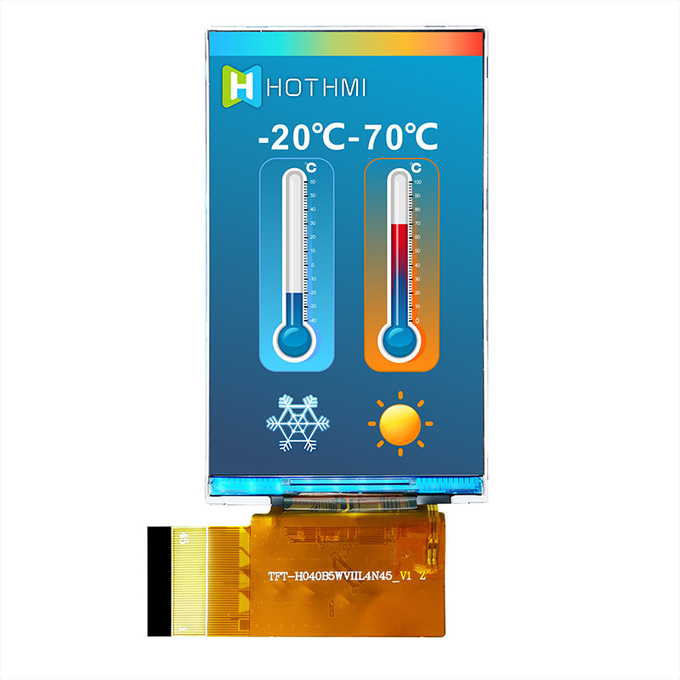

工作溫度：-20~70℃
供電電壓：2.8v

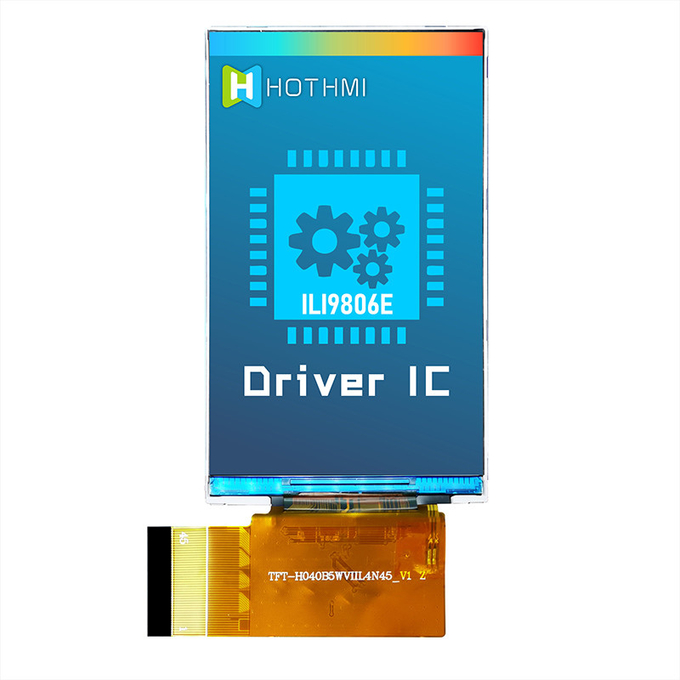

驅動芯片：ILI9806E

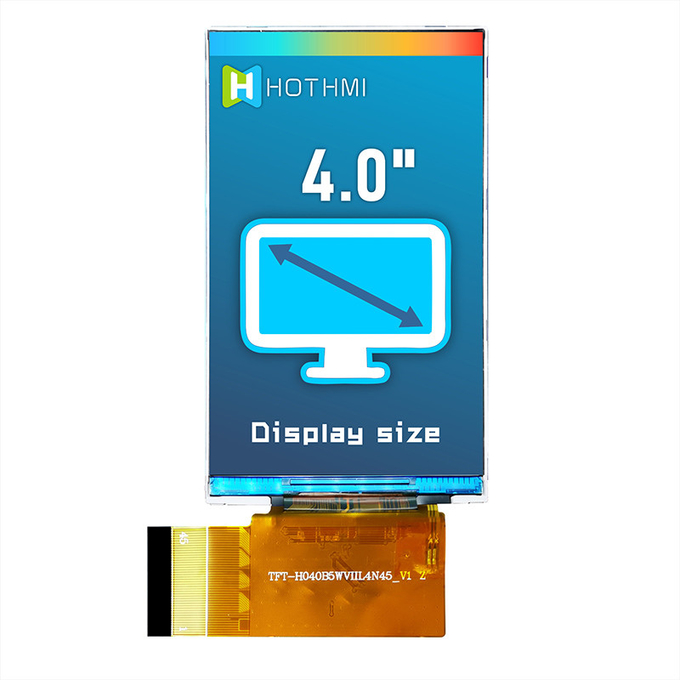

4.0寸TFT 4.0寸TFT彩屏 480*800分辨率 IPS全視角 SPI接口 TFT-H040B5WVIIL4N45
TFT-H040B5WVIIL4N45 | 4.0英寸IPS液晶顯示屏 | TFT液晶顯示屏制造商 | 480x800分辨率 | -20℃~70℃ | 用于監視器
您是否正在尋找高質量的 TFT LCD 顯示器來增強顯示器的顯示效果？ 看看 TFT-H040B5WVIIL4N45，這是一款由領先的 TFT LCD 顯示器制造商制造的 4.0" IPS LCD 顯示器。
該顯示器具有 480x800 分辨率，可提供清晰銳利的視覺效果，提升您的觀看體驗。 此外，TFT-H040B5WVIIL4N45 的工作溫度范圍為 -20℃ 至 70℃，可承受最極端的條件。
無論您是將顯示器用于工作還是娛樂(lè )，TFT-H040B5WVIIL4N45 都會(huì )提供無與倫比的觀看體驗。 相信這款 TFT LCD 顯示屏的質量和可靠性，立即升級您的顯示器。
General Feature
Item | Standard Value | Unit | ||
Display Size | 4.0 | Inch | ||
Number of Pixels | 480(H)*3(RGB)* 800(V) | dots | ||
Active Area | 51.84x86.40mm | mm | ||
Outline Dimension | 57.14×96.85×2.10 | mm | ||
Viewing Direction | FULL O'clock | - | ||
Interface | SPI 3L | - | ||
Driver IC | ILI9806E | - | ||
Driver Condition | VCI=2.8V(Typ) | V | ||
Backlight | - | - | ||
Touch Panel | WHITOUT TOUCH | |||
CTP Driver IC | - | - | ||
Driver Condition | VDD=2.8 | V | ||
TFT Operation AT | -20 ～ +70 | ℃ | ||
TFT Storage AT | -30 ～ +80 | ℃ | ||
TFT Pin Description
| Pin NO | Symbol | Description |
| 1 | LED K | LED Cathode |
| 2 | LED A | LED Anode |
| 3-6 | NC | No Connector |
| 7,8 | VCI | Analog Power(3.0 ~ 3.6 V) |
| 9 | IOVCC | Analog Power( 1.65 ~ 3.6 V) |
| 10 | RESET | Reset input |
| 11- 18 | DB23-DB16 | Data bus. |
| 19 | GND | Ground |
| 20-27 | DB15-DB8 | Data bus. |
| 28 | GND | Ground |
| 29-36 | DB7-DB0 | Data bus |
| 37 | GND | Ground |
| 38 | SCL | Serial clock input for SPI interface |
| 39 | CS | A chip select signal |
| 40 | SDI | Serial data input |
| 41 | SD0 | Serial data output |
| 42 | VSD | Vertical sync signal |
| 43 | HSD | Horizontal sync signal. |
| 44 | DEN | Data input enable. Display access is enabled when DE is “L”. |
| 45 | PCLK | Pixel clock input pin |
All Products
| Reliability Testing | Customers can expect all production parts to meet or exceed operational requirements over temperature, humidity, and vibration. |
| Glass Cleanliness | Customers can expect glass to be protected by liners and presented mindful of cleanliness standards. This means glass will be clean of contaminants, fingerprints, and other foreign material. |
| Bezel Appearance | Bezels will be uniformly painted free of foreign materials and distracting cosmetic blemishes. Our standards maintain a clean scratch-free surface. |
| PCB Appearance | PCB’s are delivered with long-term reliability in mind. Finishes are free of bubbles, foreign contaminants, and meet all UL fire requirements. PCB materials will always be delivered within industry norms. PCB edges will be cleanly cut and void of burrs. |
| Soldering | Soldering of all leaded and SMT components is consistent in providing the mechanical security and electrical connectivity. |
| Consistency | Our manufacturing and inspection processes ensure product consistency from lot to lot. This means orders processed over the years will continually meet your expectations. We do this by exacting manufacturing specifications, with attention to detail in our processes, and by comparing to the golden units. |
| Product Integrity | Quality in product manufacturing ensures integrity in construction. Customers can expect tight assembly without worry of loose parts or missing material. Our products will meet all environmental expectations including temp, humidity, & vibration conditions. |
| Glass Color | While normal variations of glass color may occur (due to manufacturing tolerances), Newhaven Display maintains color compliance per internal approved color charts. These charts are maintained to ensure any minor glass deviations are identified and corrected as needed. |
| ESD Protection & Safety | All devices are designed and handled in consideration of ESD protection. This includes ESD-SAFE packaging within anti-static bags, wraps, and trays. Customers are reminded to always follow ESD safety to best protect the devices. |
