Product type： DISPLAY
Show contents：800x480
Outline size(mm) ：140.0x95.0x15.0
Size of View Window(mm)：5.0
Display size(mm) ：5.0
Effective size(mm)：108.0x64.8
Product application：Industrial display
Visual angle：Full view
Backlight type or brightness：500cd/m2
Interface mode：VGA

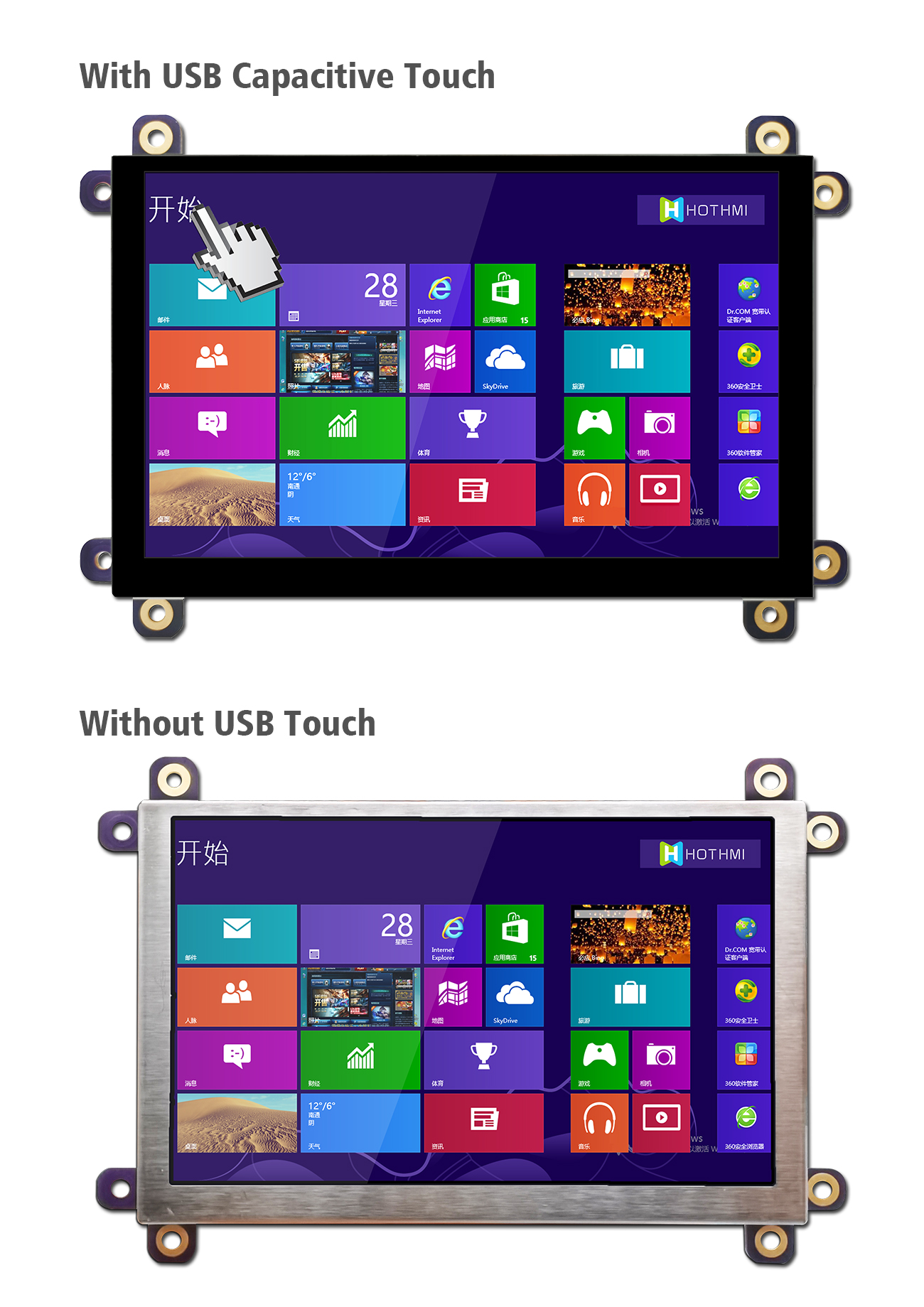

Special instructions：With USB Cap Touch
Working temperature：-20~70℃
Power supply voltage：5V/1A
Product Description Model: 5.0 inch display+USB capacitive touch/800x480 resolution/high brightness/full viewing angle/VGA interface/LCM-TFT050T61SVHDVUSDC LCM-TFT050T61SVHDVUSDC is a high-brightness 5-inch IPS TFT-LCD monitor that supports signal interface. The resolution of this TFT module is WVGA 800x480. The control board of this module is designed to support signal interface (only DVI) and 40-pin GPIO interface, which makes it more convenient for developers using Raspberry Pi. LCM-TFT050T61SVHDVUSDC adopts IPS technology to make the viewing angle wider, the typical value is up: 80/down: 80/left: 80/right: 80 degrees, TFT module built-in TBD controller IC can support signal interface (only DVI), this module Featuring a high brightness of 500 cd/m2 (typ.) and a contrast ratio of 1,000:1 (typ.), the LCM-TFT050T61SVHDVUSDC is a model equipped with a projected capacitive touch panel (PCAP) that supports one USB interface. The IC can support 1-finger/2-finger or other touch indicators. LCM-TFT050T61SVHDVUSDC module adopts bright glass surface, LCM module (VDD) voltage is 5V/1A. The working temperature range is 20℃~+70℃; the storage temperature range is -30℃~+80℃. This module supports embedded system with signal interface, LCM-TFT050T61SVHDVUSDC adopts 5-inch IPS TFT panel with wide viewing angle and high brightness backlight. The screen is also equipped with a high resolution of 800x480. The module responds quickly and is compatible with most development software. It is ideal for various product applications, especially human-machine interfaces or POS systems, etc.
