Location：Home > Product center > COG display screen > Standard COG Lattice Display Screen > 240160 COG點(diǎn)陣液晶屏/智慧油氣、油田儀器儀表顯示屏/低功耗/自帶升壓電路/HTG240160N

Model : 240160 COG dot matrix LCD screen/smart oil and gas, oilfield instrumentation display screen/low power consumption/self-contained booster circuit/HTG240160N

Product type：COG

Show contents：240x160

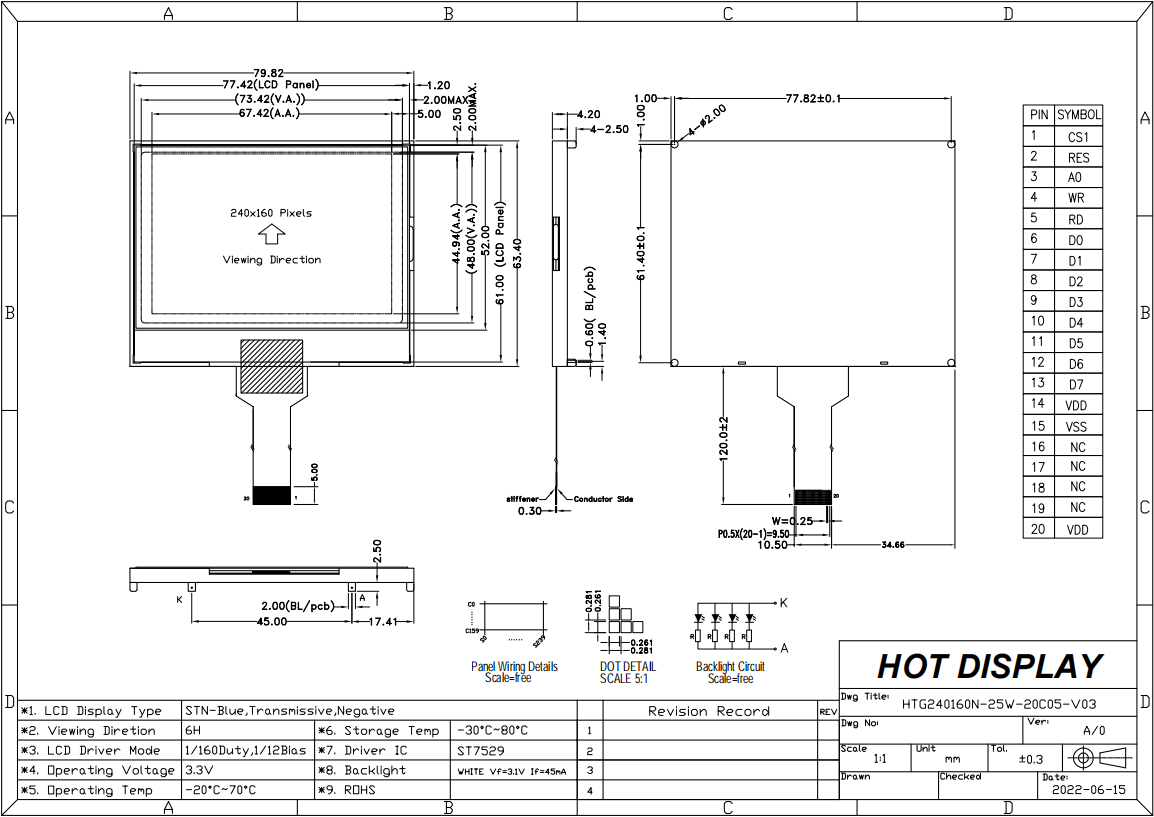

Outline size(mm) ：79.82x63.40x4.20

Size of View Window(mm)：73.42x48.0

Display size(mm) ：67.42x44.94

Point spacing(mm)：0.261x0.261

Product application：Applied to smart oil and gas, oilfield instrumentation

Visual angle：6H

Backlight type or brightness：white light

Connection PIN Number：FPC-20PIN

Interface mode：MCU

Special instructions：Low power consumption, built-in boost voltage

Working temperature：-20~70℃

Power supply voltage：3.3V

Driver chip model：ST7529
PDF download
- HTG240160N-25W-20C05-V03

Product description

HTG240160N is a COG dot matrix LCD display that can be used in smart oil and gas and oilfield instruments. It not only has low power consumption, but also has its own boost circuit, supports 32-level grayscale adjustment, and has a distinct sense of hierarchy.
