Product type：TFT
Show contents：128x160
Outline size(mm) ：34.0x43.7x2.3
Size of View Window(mm)：1.77
Display size(mm) ：1.77
Effective size(mm)：28.032x35.040
Product application：戶(hù)外設備，手持設備
Visual angle：12H
Backlight type or brightness：850cd/m2
Connection PIN Number：FPC-10PIN
Interface mode：SPI
Special instructions：Anti-static ESD 8KV
Working temperature：-20~70℃
Power supply voltage：2.8v
Driver chip model：ST7735S

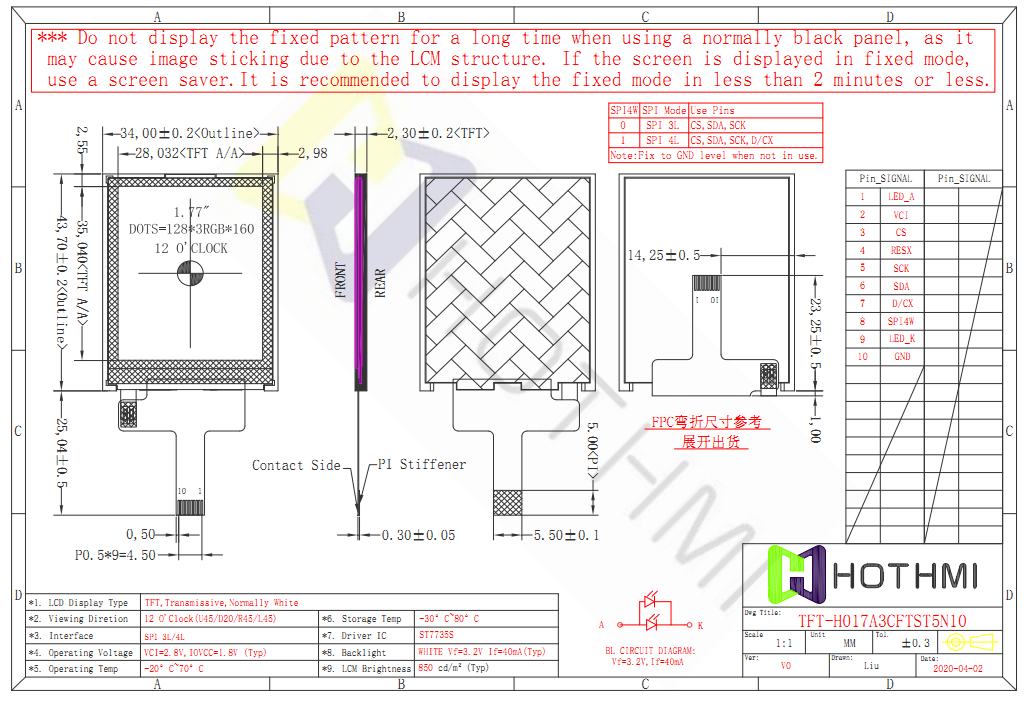

1.8-inch (1.77 ") TFT LCD (tft-h017a3cftst5n10) is a 1.8-inch (1.77-inch) TFT color LCD module with 128x160 resolution, which is carefully designed by HOTDISPLAY,
65K / 262K true color, built-in st7735s controller, high picture quality, wide viewing angle, support 3-wire SPI, 4-wire SPI serial interface, infinite peripheral circuit, only 10pinfpc connection (optional connector), 2.8V voltage, support horizontal or vertical display. All materials meet the ROHS standard of environmental protection requirements. This module can be equipped with touch screen, which is widely used in various instruments, intelligent equipment, analytical instruments, hand-held instruments, driving recorder, etc. it is suitable for a variety of single-chip development platforms, such as 8051, PIC, AVR, Arduino, arm and Raspberry PI.
